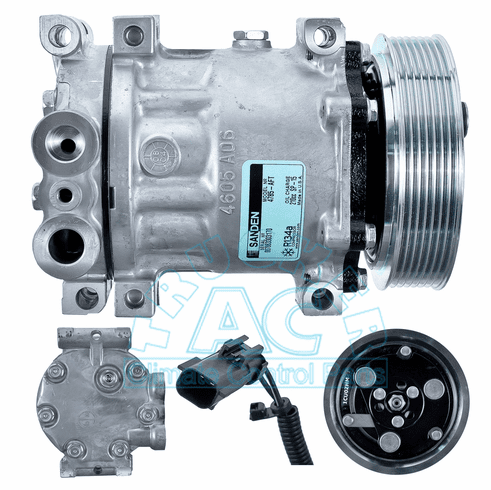

Sanden 4785 Dodge

2002 1995, T-300 RAM, 5.9L gas, 8.0L gas, V10, PV7, 130mm Dia.

Specifications

Manufacturer #: 4785

Application: Dodge Trucks

Description: A/C Compressor/DODGE PU

Volts: 12V

Clutch Diameter: 130mm

No. of Grooves: 7 groove

Belt Type: Serpentine

No. Comp. Cylinders: 7 cyl

Comp. Displacement (ci): 9.5 cu.in.

Factory Oil Charge: 210cc Oil

Fitting Port Position: Top

Fitting Style: Chrysler Pad

Head Type: GF

Wire Type: 2 Wire Chrysler #4687921

Replacement Clutch Assy.: NSS

Replacement Head Assy: NSS

Model: SD7H15HD

Mounting Type: SD7 Direct T300

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW

O-Ring #1: NSS

O-Ring #2: NSS

Shaft Type: Involute Spline 13X24X0.5

Diode Protection:

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, bus, RV and van AC parts.

INTERCHANGE: Sanden 4359 4683 4725 4773 4845 4888 4605 4692 4723 4748 4771 4774 4785 4788 U4359 U4683 U4725 U4773 U4845 U4888 U4605 U4692 U4723 U4748 U4771 U4774 U4785 U4788
