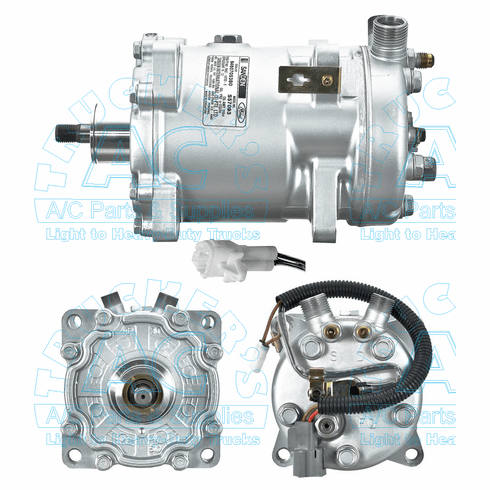

Sanden 57093 Ford / Sterling F0HZ-19703E

Ford / Sterling, 1995 1990, L,LN,LNT,LT Ser., w/Sanden w/Cat & Cummins (w/o clutch), OEM# F0HZ-1970E

Ford / Sterling, 1991 1991, LA800, w/Sanden SD510HD (w/o clutch), OEM# F0HZ-19703E

Specifications

Manufacturer #: 57093

Application: Ford/Sterling Trucks

Description: Sanden Compressor w/o cl.

Clutch Diameter: w/o CLUTCH

Belt Type: w/o CLUTCH

No. Comp. Cylinders: 5 cyl

Comp. Displacement (ci): 8.4 cu.in.

Factory Oil Charge: 300cc Oil

Fitting Port Position: Vertical

Fitting Style: Male Insert O-Ring #8 & #10

Head Type: FQ

Wire Type: None

Replacement Clutch Assy.: w/o CLUTCH

Replacement Head Assy: NSS

Model: SD510

Mounting Type: Ear 8 Long

Oil Type: Mineral

Product Name: Compressor

Refrigerant Type: R12

Rotation: CW

O-Ring #1: 16-4208

O-Ring #2: 16-4210

Shaft Type: SD5 Keyed Shaft

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.

INTERCHANGE: 5773NC N83-304077 N83-304137 E9HZ-19703D F0HZ-19703E N83304077 N83304137 E9HZ19703D F0HZ19703E 57093 96823 (5709 w/02-0428) (9682 w/02-0428) E8HZ-19703B E8HZ19703B
