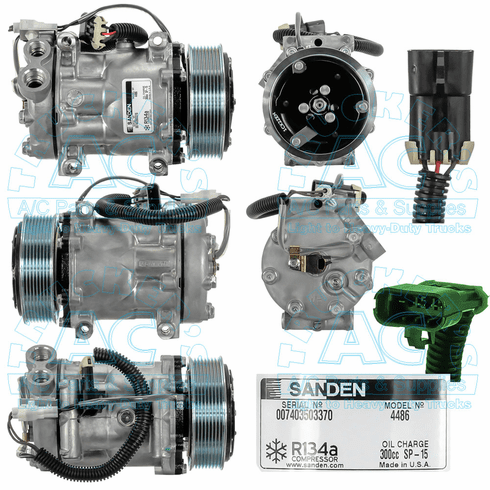

Sanden 4025 Ford Sterling A22-48973-000 A2248973000
All w/C12 ISX w/8 grv, 119mm Dia. WH Head (4767,4486)
w/CAT C12 & Det S60 Eng w/8 grv.,119mm;WH Head(4303/4422/4767) A22-48973-000
Specifications
Manufacturer #: 4486
Application: Ford/Sterling Trucks
Description: Sanden Compressor 8gr WH 12v
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Top
Fitting Style: Ford O-ring Pad
Head Type: WH
Wire Type: 3 Wire Delphi #15300003
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: SD7H15HD
Mounting Type: Direct Long
OEM Number: ABPN83-304523
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: None
INTERCHANGE: A2248973000 5322 N83-304434 N83-304484 N83-304523 N83304434 N83304484 N83304523 75R-81152 75R-81312 RD5-11237-0 RD5-11252-0 75R81152 75R81312 RD5112370 RD5112520 4303 4486 4767
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and van AC parts.
