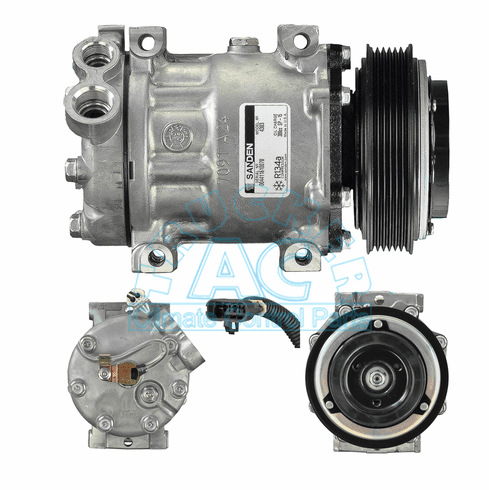

Sanden 4025 Super Heavy Duty Ford / Sterling
FORD L-SERIES and STERLING A-AT, ACTERRA, L- LINE 5500, 6500, 7500, 8500, SILVERSTAR, All w/C12 ISX, w/8 grv., Super Heavy Duty version of 03-0427 (4025)
Specifications
Manufacturer #: 4025
Application: Ford/Sterling Trucks
Description: SANDEN SUPER HD COMPRESSOR
Additional Description: Super HD style
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Top
Fitting Style: Ford O-ring Pad
Head Type: WH
Wire Type: 3 Wire Delphi #15300003
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: SD7H15-Super HD
Mounting Type: Direct Long
OEM Number: ABPN83-304523S
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: Diode/Thermal Fuse
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 4025
