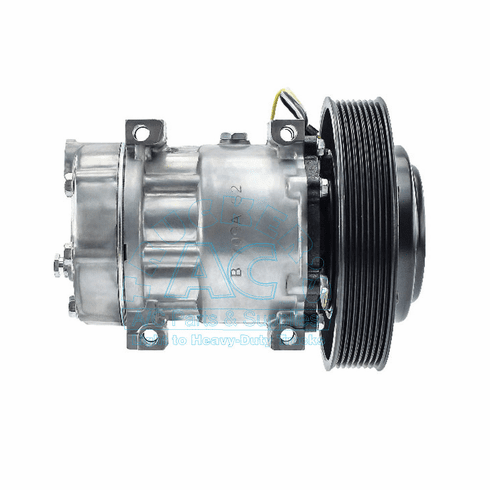

Sanden AC Compressor Aftermarket Grade - Ford Sterling #ABPN83-304523
OEM Number: ABPN83-304523
Make: Sanden
Manufacturer #: 4486
Application: Ford/Sterling Trucks
Description: Sanden Compressor 8gr WH 12v
Volts: 12V
Other OE Sanden #: 4767
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Top
Fitting Style: Ford O-ring Pad
Head Type: WH
Wire Type: 3 Wire Delphi #15300003
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: SD7H15HD
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: None
Truck Air Oring 1: 16-4208
Truck Air Oring 2: 16-4210
Truck Air Seal 1: 16-4208
Truck Air Seal 2: 16-4210
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
INTERCHANGE: AIRSOURCE #54025G
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
