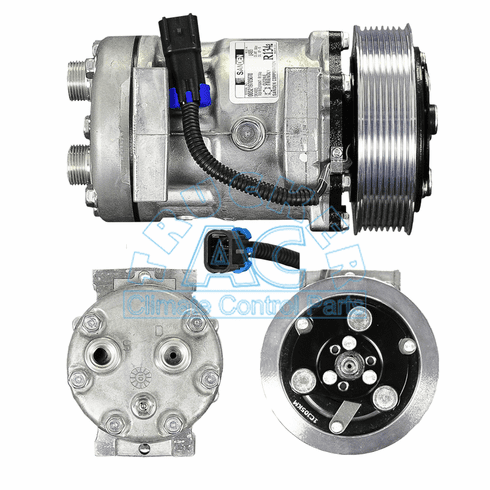

Sanden 4885 4817 4885 4482 Ford Sterling
Sanden Compressor Ford Sterling
2002 1999 F150-350, w/Sanden w/8 grv. 119mm (4817, 4885), 4482)
FORD L-SERIES and STERLING A-AT, ACTERRA, L- LINE 5500, 6500, 7500, 8500, SILVERSTARw/FS10 Compr., w/8 grv.,130mm MJA head Direct Mnt., SKI4885
SD7H15, 8 gr. 119mm Dia. w/OE# (4817, 4885)
Specifications
Manufacturer #: 4885
Application: Ford/Sterling Trucks
Description: SD4885 Compressor
Volts: 12V
Clutch Diameter: 130mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Tube-O 1 x 14
Head Type: MDA
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-0439
Replacement Head Assy: 03-6534A
Model: SD7H15HD
Mounting Type: Direct Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4210
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and van AC parts.
INTERCHANGE: 5371 4814 4885
