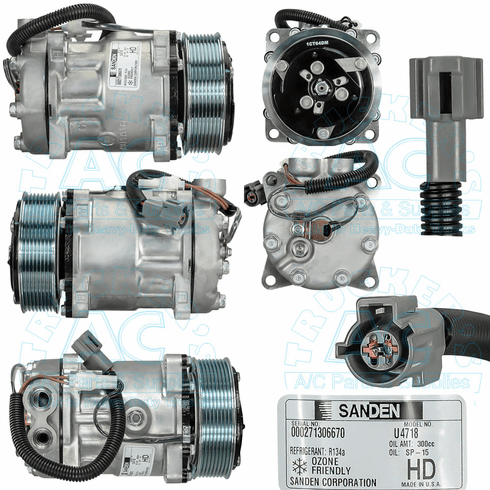

Sanden Genuine OEM #: XC4H-19D629AA - Ford/Sterling Trucks
OEM Number: XC4H-19D629AA
Make: Sanden
Manufacturer #: 4305
Application: Ford/Sterling Trucks
Description: Sanden Compressor
Volts: 12V
Other OE Sanden #: 4305
Additional OE Sanden #: 4427
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Top
Fitting Style: Ford O-ring Pad
Head Type: WJ
Wire Type: 2 Wire Ford F5TB-14A464-FA W/ Wedge
Replacement Clutch Assy.: 02-0430
Replacement Head Assy: NSS
Model: SD7H15HD
Mounting Type: Ear 8 Long
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: None
Truck Air Oring 1: 16-4208
Truck Air Oring 2: 16-4210
Truck Air Seal 1: 16-4208
Truck Air Seal 2: 16-4210
INTERCHANGE: AIRSOURCE 5323; ALLIANCE N83-304454, N83-304533, N83-304752, N83-304753; BERGSTROM 1000141475; FORD/STERLING F6HS-19D629BA, X4CH-19D629AA, XC4H-19D629AA; RED DOT 75R-81172, 75R-81392, RD5-11239-0, RD5-11259-0; SANDEN 4305, 4427, 4496, 4718
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
