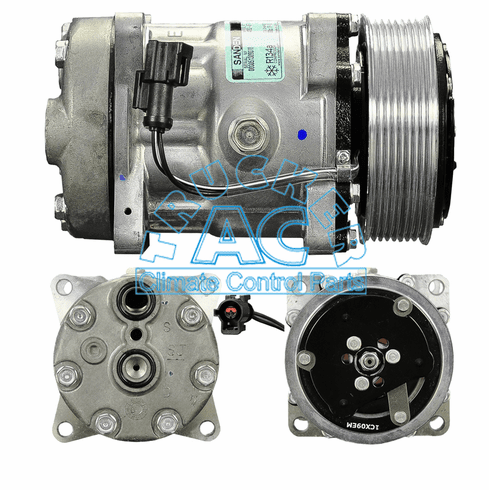

Sanden 4753 Ford / Sterling OEM# X3CH-19D629BA
Ford / Sterling, 2001 1999, F150-350, w/Sanden SD7H15 #4753 (w/8 grv. clutch), OEM# X3CH-19D629BA
Specifications
Manufacturer #: 4753
Application: Ford/Sterling Trucks
Description: Sanden Compressor/Ford
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Ford O-ring Pad
Head Type: SJ
Wire Type: 2 Wire Ford E7EB-14A464-DA W/ Wedge
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: SD7H15HD
Mounting Type: Ear 8 Long
OEM Number: XC3H-19D629BA
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4224
O-Ring #2: 16-4224
Shaft Type: Involute Spline 13X24X0.5
Diode Protection: None
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5355 XC3H-19D629BA XC3H19D629BA 4753
