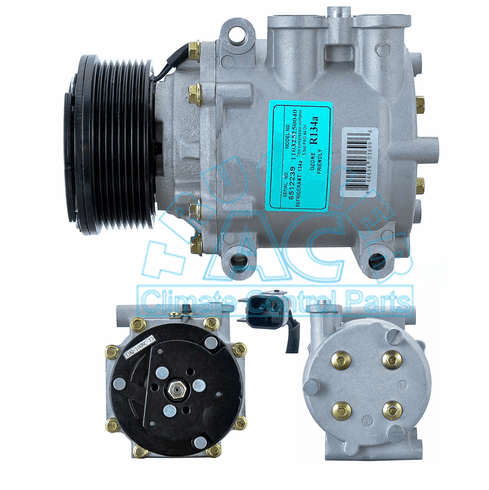

FORD Compressor & Clutch OEM# 1L2H-194897DC
2003 2001, E150-350 w/7.3L Dies., w/8grv. clutch (Scroll), OEM# 1L2H-19497DC, 1L2H194897DC
Specifications
Application: Ford/Sterling Trucks
Description: Scroll Compressor w/8gr clut
Volts: 12V
Clutch Diameter: 106.5mm
No. of Grooves: 8 groove
Belt Type: Serpentine
Factory Oil Charge: Check label instructions
Fitting Port Position: Body
Wire Type: Plug
Replacement Clutch Assy.: NSS
Model: SCROLL
Mounting Type: 3 Lug mount
OEM Number: 1L2H-194897DC
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
O-Ring #1: 16-4224
O-Ring #2: 16-4224
Shaft Type: Splined shaft
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5483 2C24-19D629CB 2C2419D629CB 1L2H194897DC
Specifications
Application: Ford/Sterling Trucks
Description: Scroll Compressor w/8gr clut
Volts: 12V
Clutch Diameter: 106.5mm
No. of Grooves: 8 groove
Belt Type: Serpentine
Factory Oil Charge: Check label instructions
Fitting Port Position: Body
Wire Type: Plug
Replacement Clutch Assy.: NSS
Model: SCROLL
Mounting Type: 3 Lug mount
OEM Number: 1L2H-194897DC
Oil Type: PAG46
Product Name: Compressor
Refrigerant Type: R134a
O-Ring #1: 16-4224
O-Ring #2: 16-4224
Shaft Type: Splined shaft
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5483 2C24-19D629CB 2C2419D629CB 1L2H194897DC
