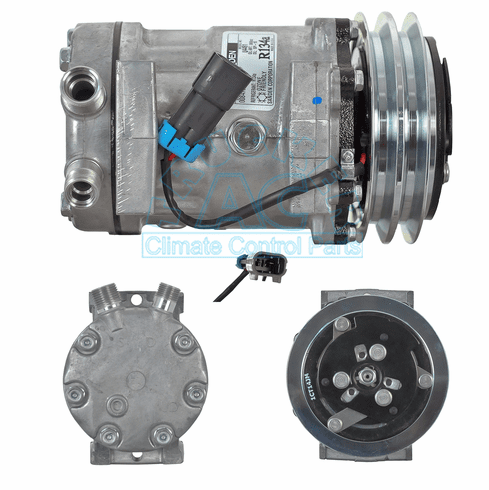

Sanden 4752 4491 Freightliner 22-47694-000 Kenworth F69-1002
Freightliner, All w/2 gr. 132mm (S 60), #4752, OEM# 22-47694-000
Kenworth, SD7H15 / SD7H15HD, (R134a), w/2 gr 125mm 2 wire clutch, (4695), OEM# F69-1002
Kenworth, SD7H15 / SD7H15HD, (R134a), w/2 gr 125mm S60, (4695), OEM# F69-1002
Peterbilt, All Models, SD7H15 / SD7H15HD, (R134a), w/2 gr 125mm 2 wire clutch, (4695), OEM# F69-1002, F69-6002-133
Specifications Manufacturer #: 4491 Application: Freightliner Trucks Description: Sanden Compressor Volts: 12V Clutch Diameter: 132mm No. of Grooves: 2 groove Belt Type: Two 1/2'' Belts No. Comp. Cylinders: 7 cyl Comp. Displacement (ci): 9.5 cu.in. Factory Oil Charge: 300cc Oil Fitting Port Position: Vertical Fitting Style: Male Insert O-Ring #8 & #10 Head Type: JDA Wire Type: 2 Wire Female Packard #15300002 Replacement Clutch Assy.: 02-1604 see note Replacement Head Assy: 03-6533A Model: SD7H15HD Mounting Type: Direct Long OEM Number: 22-47694-000 Oil Type: PAG100 Product Name: Compressor Refrigerant Type: R134a Rotation: CW O-Ring #1: 16-4208 O-Ring #2: 16-4210 Shaft Type: Long Key Shaft Additional Notes: OE has diode, Reuse Harness Diode Protection: w/diode, Reuse Harness
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5329 N83-304093 N83-304522 N83304093 N83304522 ZGG705015 22-47694-000 2247694000 1401125 F69-6001-133 F69-6002-133 75R-84192 F696001133 F696002133 75R84192 4491 4752 85100873 F69-1002 F691002 4695 5284M E-801147 E801147 5286M
