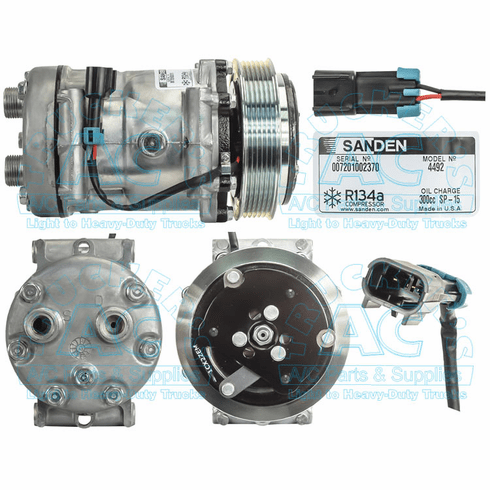

Sanden 4492 Freightliner OEM# 22-48437-000
Sanden 4492 Compressor for Freightliner
Specifications
Manufacturer #: 4492
Application: Freightliner Trucks
Description: Sanden Compressor 6gr MDA
Volts: 12V
Clutch Diameter: 125mm
No. of Grooves: 6 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Tube-O 1 x 14
Head Type: MDA
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-0606 see note
Replacement Head Assy: 03-6534A
Model: SD7H15HD
Mounting Type: Direct Long
OEM Number: 22-48437-000
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4210
O-Ring #2: 16-4210
Shaft Type: Involute Spline 13X24X0.5
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, buses, RV's and vans.
INTERCHANGE: 5345 N83-304424 N83-304542 N83304424 N83304542 ZGG705017 22-48437-000 2248437000 1401127 2032287-C91 3541235-C91 75R-81352 RD5-11254-0 2032287C91 3541235C91 75R81352 RD5112540 4492 4761 85100875
