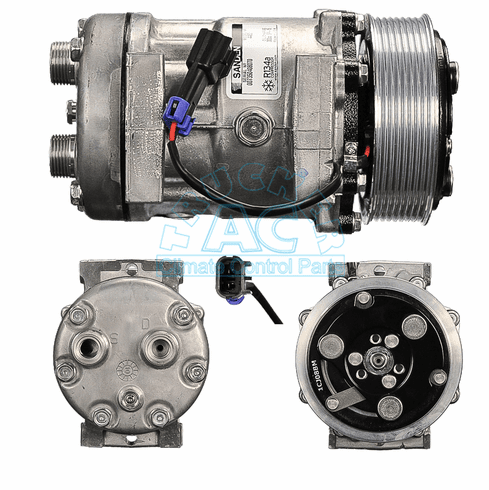

Sanden 4421 Ford/Sterling OEM# ABPN83-304113
Sanden Compressor for the following:
Ford/Sterling 1990 1990, w/CAT C7 & 3126B Eng., w/8 grv.,119mm MJA head Direct Mnt., OEM# SKI4482
Freightliner All, w/8 gr 119mm (Mer 906LA/Ser 60), OEM# 4776, 4421, SKI 4776
Western Star SD7H15, 8 gr. 119mm Dia., OEM# 4776, 4421, ABPN83-304553
Specifications
Manufacturer #: 4421
Application: Freightliner Trucks
Description: Sanden Compressor
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Tube-O 1 x 14
Head Type: MDA
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-0601
Replacement Head Assy: 03-6534A
Model: SD7H15HD
Mounting Type: Direct Long
OEM Number: ABPN83-304113
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4210
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, bus, RV and van AC parts.
INTERCHANGE: N83-304793 N83304793 1401399 5331 U5331 N83-304113 N83-304553 N83-304772 18-00093-04 N83304113 N83304553 N83304772 180009304 ZGG705022 SKI4776 1401130 75R-81282 75R-84232 RD5-10267-0 RD5-11249-0 75R81282 75R84232 RD5102670 RD5112490 4421 4482 4776 U4421 U4482 U4776 85100876 E-801152 ABPN83-304113 ABPN83304113 ABPN83304553 Airsource 5331 AC501-298A
