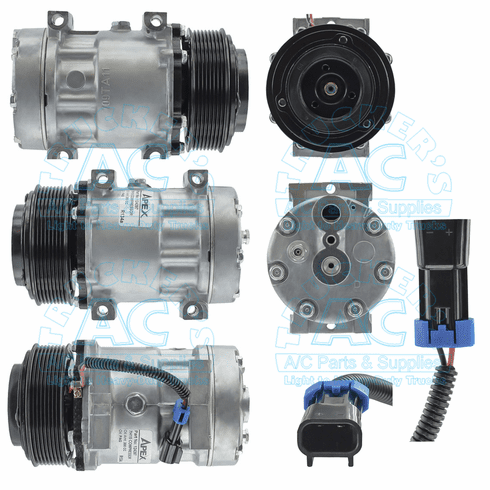

Sanden A/C Compressor - Aftermarket Grade OEM# ABPN83-304543S

DESCRIPTION:

Make: Sanden Style
Manufacturer: QCC
Manufacturer #: 4352
Application: Freightliner Trucks
Description: Sanden AFT Comp 8 gr 119mm
Volts: 12V
Other OE Sanden #: 4352
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Pad w/Slimline connections
Head Type: GH
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-0601S
Replacement Head Assy: 03-6551
Model: 7H15SPRHD
Oil Type: PAG100
Product Name: A/C Compressor w/clutch
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Notes: Aftermarket Model
Diode Protection: w/diode
Truck Air Oring 1: 16-4272
Truck Air Seal 1: 16-4272


INTERCHANGE:

AIRSOURCE: 5333SG


All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
