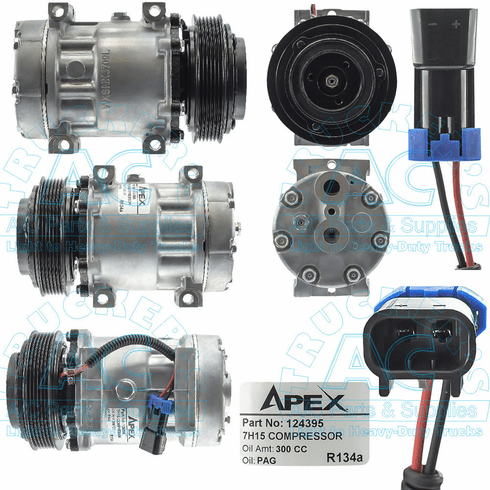

Sanden AC Compressor Aftermarket Grade - Freightliner #ABPN83-304573
Zoom

Sanden AC Compressor Aftermarket Grade - Freightliner #ABPN83-304573

Item# 03-0610SG
$218.96
Availability: Usually ships the same business day.

OEM Number: ABPN83-304573

Make: Sanden

Manufacturer #: 4430

Application: Freightliner Trucks

Description: Sanden Compressor

Volts: 12V

Other OE Sanden #: 4430

Additional OE Sanden #: 4819

Clutch Diameter: 125mm

No. of Grooves: 6 groove

Belt Type: Serpentine

No. Comp. Cylinders: 7 cyl

Comp. Displacement (ci): 9.5 cu.in.

Factory Oil Charge: 300cc Oil

Fitting Port Position: Horizontal

Fitting Style: Pad w/Slimline connections

Head Type: GH

Wire Type: 2 Wire Female Packard #15300002

Replacement Clutch Assy.: 02-0606

Replacement Head Assy: 03-6551

Model: SD7H15HD

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW

Shaft Type: Long Key Shaft

Diode Protection: w/diode

Truck Air Oring 1: 16-4272

Truck Air Seal 1: 16-4272



All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

INTERCHANGE: AIRSOURCE #5334SG

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
