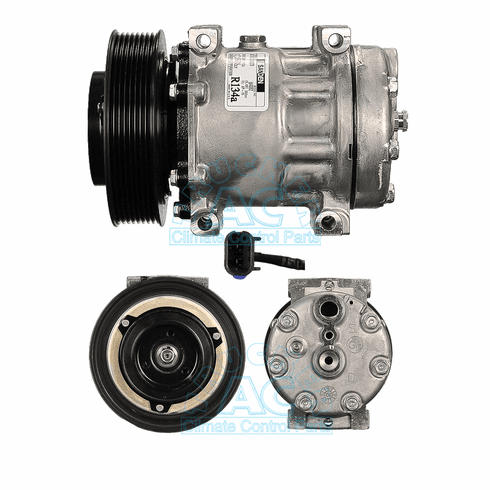

Sanden 4543 4082 Freightliner SKI4543S
Freightliner, SD7H15 SERIES, R134a, 2009 2008, All w/8 gr 140mm, Dir. Mount ,GH Hd., (4543), OEM# SKI 4543
Ford / Sterling, FORD L-SERIES and STERLING A-AT, ACTERRA, L- LINE 5500, 6500, 7500, 8500, SILVERSTAR, w/Cummins ISC07, w/8 grv.,140mm Dia;, GH Head OEM# SKI4543S
Specifications
Manufacturer #: 4543
Application: Freightliner Trucks
Description: SANDEN SUPRHD COMPRESSOR
Additional Description: Super HD style
Volts: 12V
Clutch Diameter: 140mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Pad w/Slimline connections
Head Type: GH
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-0610S
Replacement Head Assy: 03-6551
Model: SD7H15-Super HD
Mounting Type: Direct Short
OEM Number: SKI4543
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4272
O-Ring #2: 16-4272
Shaft Type: Long Key Shaft
Diode Protection: Diode/Thermal Fuse
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5396 1401396 4082 4543 4543S
Ford / Sterling, FORD L-SERIES and STERLING A-AT, ACTERRA, L- LINE 5500, 6500, 7500, 8500, SILVERSTAR, w/Cummins ISC07, w/8 grv.,140mm Dia;, GH Head OEM# SKI4543S
