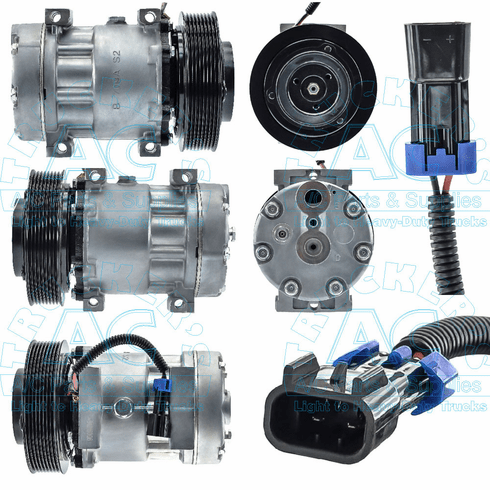

Sanden Style Aftermarket Compressor Freightliner
Application: Freightliner Trucks
Description: SANDEN SUPRHD COMPRESSOR
Additional Description: Super HD style
Volts: 12V
Other OE Sanden #: 4543
Clutch Diameter: 140mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Pad w/Slimline connections
Head Type: GH
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-0610S
Replacement Head Assy: 03-6551
Model: SD7H15-Super HD
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: Diode/Thermal Fuse
Truck Air Oring 1: 16-4272
Truck Air Seal 1: 16-4272
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
INTERCHANGE: AIRSOURCE #5396G, ALLIANCE #N83-304455, KYSOR #1401396, SANDEN #4082 / 4543 / 4543S
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
