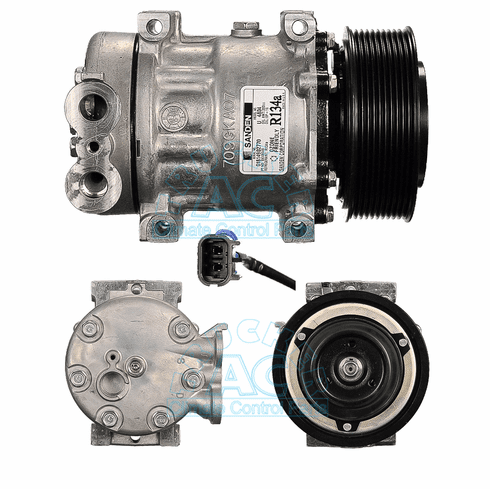

Sanden 4804 Freightliner SKI 4804S
Sanden Compressor 4804 for Freightliner
Specifications
Manufacturer #: 4804
Application: Freightliner Trucks
Description: SD7H15 SHD COMPRESSOR/FRTLNR
Additional Description: Sealed HD style
Volts: 12V
Clutch Diameter: 126mm
No. of Grooves: 10 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 135cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Universal O-ring FLX-7 Pad
Head Type: GV
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-3512S
Replacement Head Assy: 03-6554
Model: 7H15SPRHD
Mounting Type: Direct Short
OEM Number: SKI4804S
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4272
O-Ring #2: 16-4272
Shaft Type: Long Key Shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, buses, RV's and vans.
INTERCHANGE: 5399 4804 4804S
