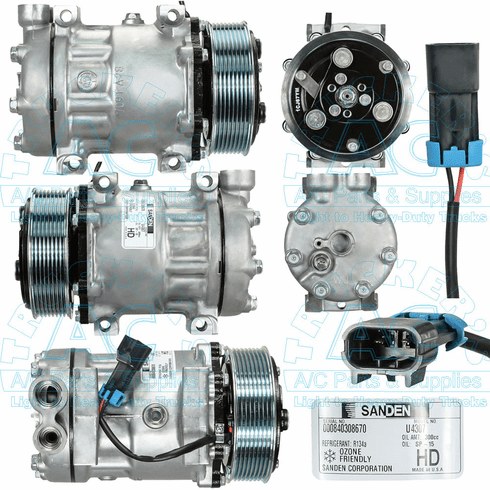

Sanden Genuine - #: 4307 - OEM #: SKI4307 - Freightliner Trucks
Make: Sanden
Manufacturer #: 4307
Application: Freightliner Trucks
Description: Sanden Compressor/SD 4307
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Top
Fitting Style: Ford O-ring Pad
Head Type: WJ
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-0601
Replacement Head Assy: NSS
Model: SD7H15HD
Mounting Type: Direct Long
OEM Number: SKI4307
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Truck Air Oring 1: 16-4208
Truck Air Oring 2: 16-4210
Truck Air Seal 1: 16-4208
Truck Air Seal 2: 16-4210
Freightliner, 2009, 2007, 2008, SD7H15 SERIES R134a, All Models, w/8 gr 119mm, Dir. Mount, WJ Hd (4307), SKI 4307
Western Star, SD7H15, 8 gr. 119mm 4 3/4" dia. (4307), SKI 4307
INTERCHANGE: AIRSOURCE 5403; CASE / IH 8760977, 87609977; FREIGHTLINER 22-64507-000, SKI4307; KYSOR 1410074; SANDEN 4307
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
Manufacturer #: 4307
Application: Freightliner Trucks
Description: Sanden Compressor/SD 4307
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Top
Fitting Style: Ford O-ring Pad
Head Type: WJ
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-0601
Replacement Head Assy: NSS
Model: SD7H15HD
Mounting Type: Direct Long
OEM Number: SKI4307
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Truck Air Oring 1: 16-4208
Truck Air Oring 2: 16-4210
Truck Air Seal 1: 16-4208
Truck Air Seal 2: 16-4210
Freightliner, 2009, 2007, 2008, SD7H15 SERIES R134a, All Models, w/8 gr 119mm, Dir. Mount, WJ Hd (4307), SKI 4307
Western Star, SD7H15, 8 gr. 119mm 4 3/4" dia. (4307), SKI 4307
INTERCHANGE: AIRSOURCE 5403; CASE / IH 8760977, 87609977; FREIGHTLINER 22-64507-000, SKI4307; KYSOR 1410074; SANDEN 4307
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
