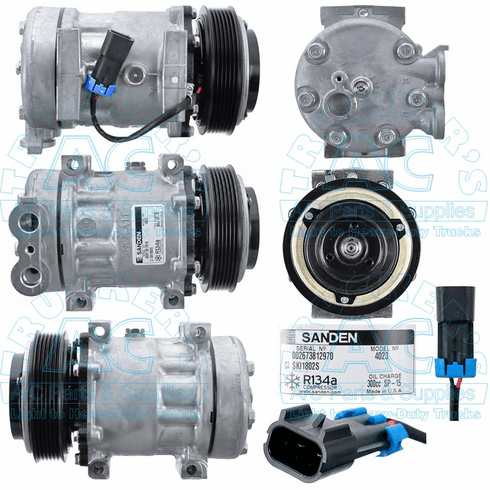

Sanden 4023 Freightliner

Sanden 4023 for Freightliner Trucks

Specifications

Manufacturer #: 4023

Application: Freightliner Trucks

Description: SANDEN SPRHD COMP 6GR

Additional Description: Super HD style

Volts: 12V

Clutch Diameter: 125mm

No. of Grooves: 6 groove

Belt Type: Serpentine

No. Comp. Cylinders: 7 cyl

Comp. Displacement (ci): 9.5 cu.in.

Factory Oil Charge: 300cc Oil

Fitting Port Position: Top

Fitting Style: Navistar Special Pad

Head Type: 4802

Wire Type: 2 Wire Female Packard #15300002

Replacement Clutch Assy.: 02-0606S

Replacement Head Assy: NSS

Model: SD7H15-Super HD

Mounting Type: Direct Short

OEM Number: SKI1802E

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW

O-Ring #1: 16-4272

O-Ring #2: 16-4272

Shaft Type: Long Key Shaft

Diode Protection: Diode/Thermal Fuse

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, buses, RV's and vans.

INTERCHANGE: SKI1802E 4023
