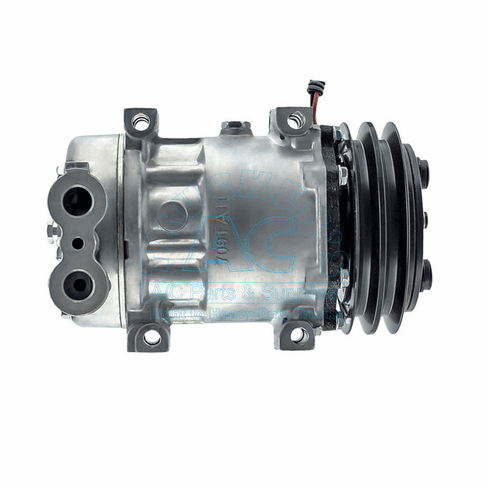

Sanden Style Aftermarket Compressor Freightliner
Application: Freightliner Trucks
Description: SANDEN SD7H15 W/132MM 2GR
Volts: 12V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Top
Fitting Style: Navistar Special Pad
Head Type: 4802
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-1604 see note
Replacement Head Assy: NSS
Model: SD7H15HD
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Truck Air Oring 1: 16-4272
Truck Air Seal 1: 16-4272
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
INTERCHANGE: AIRSOURCE #54540G, SANDEN #4540
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
