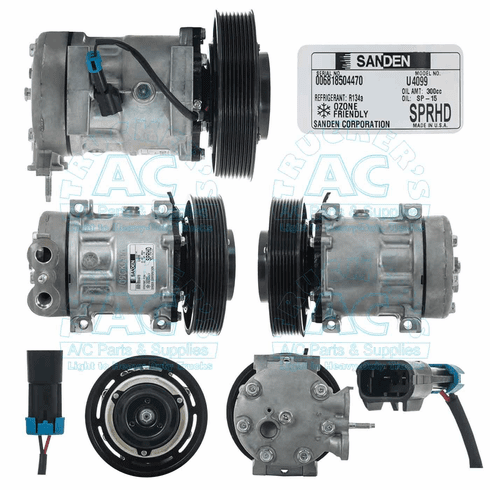

Sanden 4099 Freightliner OEM# 22-65918-000
Specifications
Manufacturer #: 4099
Application: Freightliner Trucks
Description: SANDEN COMPRESSOR/FRTLINER
Additional Description: Super HD style
Volts: 12V
Clutch Diameter: 160mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Top
Fitting Style: Freightliner Pad Style
Head Type: 4802
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: SD7H15-Super HD
Mounting Type: Direct Short
OEM Number: 22-65918-000
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4272
O-Ring #2: 16-4272
Shaft Type: Long Key Shaft
Diode Protection: Diode/Thermal Fuse
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5405s 22-65771-000 4099
