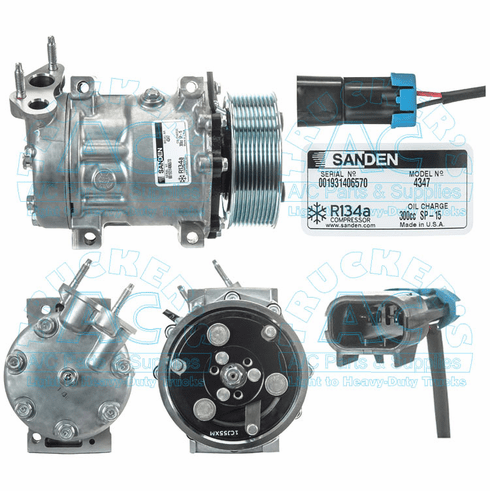

Sanden 4347 International (Navistar)
International (Navistar), All w/10 gr 119mm Direct mtg, (4347), SD 4347
TAC# 03-0805
Manufacturer #: 4347
Application: Navistar Trucks
Description: SD7H15E ENHANCED COMP 10GR
Additional Description: Enhanced Version
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 10 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 13 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Top
Fitting Style: Navistar Special Pad
Head Type: 4347
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 50412
Replacement Head Assy: NSS
Model: SD7H15E
Mounting Type: Direct Long
OEM Number: 3611894-C91
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 0155
O-Ring #2: 0156
Shaft Type: Long Key Shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5400 3611894-C91 3611894C91 4347
