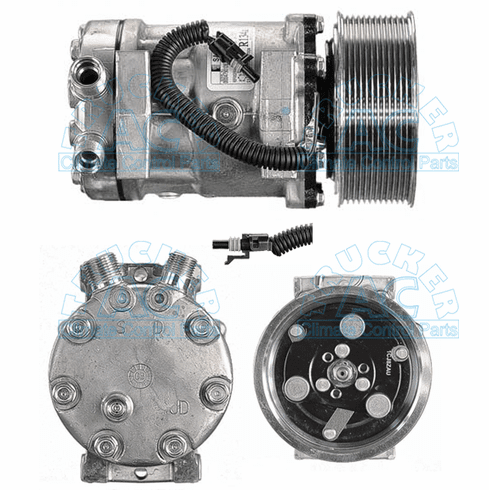

Sanden 4678 Super Heavy Duty International (Navistar)
International (Navistar), All w/12 gr 126mm Direct Mount JDA Hd (4678), SD 4678
Specifications
Manufacturer #: 4678
Application: Navistar Trucks
Description: SD7H15 COMP W/12GR CLUTCH
Volts: 12V
Clutch Diameter: 126mm
No. of Grooves: 12 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Vertical
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: JDA
Wire Type: 1 Wire Male Packard #12015791 W/ Diode
Replacement Clutch Assy.: NSS
Replacement Head Assy: 03-6533A
Model: SD7H15HD
Mounting Type: Direct Long
OEM Number: RV012408
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 4678
