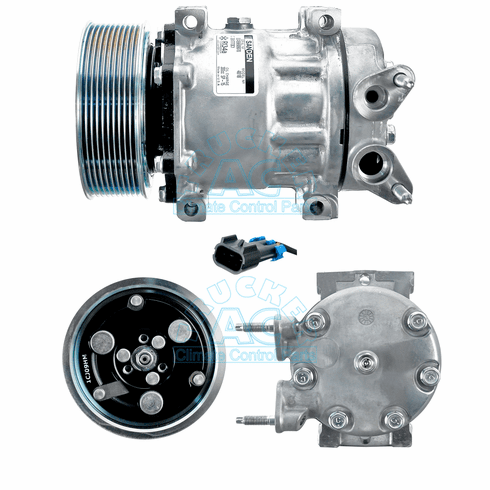

Sanden 4018 International (Navistar) OEM 3811773-C1
International (Navistar), All w/10 gr 126mm Direct Mount 4018 Hd (4018), OEM 3811773-C1
Specifications
Manufacturer #: 4018
Application: Navistar Trucks
Description: Sanden Compressor Navistar
Volts: 12V
Clutch Diameter: 126mm
No. of Grooves: 10 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Top
Fitting Style: Navistar Special Tear Pad
Head Type: 4018
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-3512
Replacement Head Assy: NSS
Model: SD7H15HD
Mounting Type: Direct Short
OEM Number: 3817773-C1
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4295
O-Ring #2: 16-4296
Shaft Type: Long Key Shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 3811773-C1 3811773C1 4018 4018-6000
