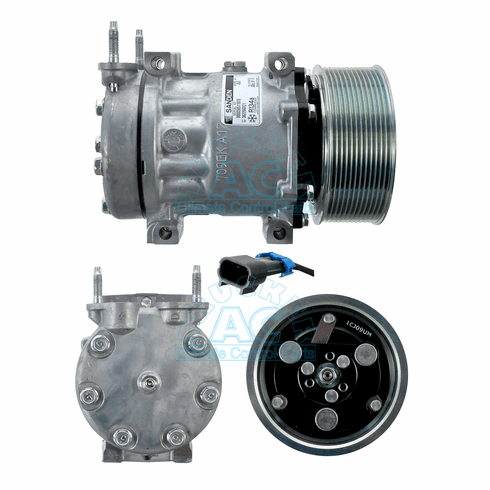

Sanden Compressor 4541 Navistar
Sanden Compressor for Navistar Trucks
Specifications
Manufacturer #: 4541
Application: Navistar Trucks
Description: SANDEN SD7H15 W/12GR CLUTCH
Volts: 12V
Clutch Diameter: 126mm
No. of Grooves: 12 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Top
Fitting Style: Navistar Special Pad
Head Type: 4418
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-3514
Replacement Head Assy: 03-6563
Model: SD7H15HD
Mounting Type: Direct Short
OEM Number: SKI4548
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4295
O-Ring #2: 16-4296
Shaft Type: Long Key Shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, buses, RV's and vans.
INTERCHANGE: 4541
