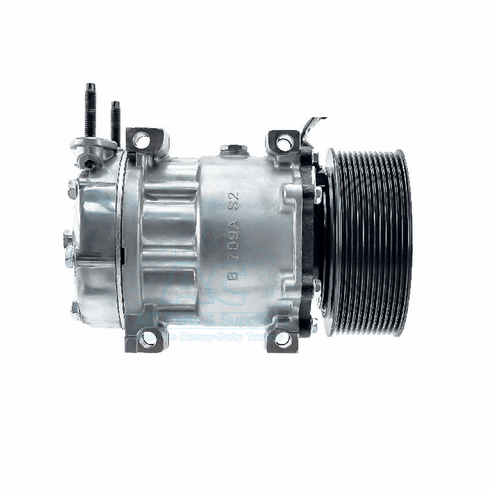

Sanden Style Aftermarket Compressor Navistar
Application: Navistar Trucks
Description: SANDEN STYLE SD7H15 W/12GR CLUTCH
Volts: 12V
Clutch Diameter: 126mm
No. of Grooves: 12 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Top
Fitting Style: Navistar Special Pad
Head Type: 4418
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-3514
Replacement Head Assy: 03-6563
Model: SD7H15HD
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Truck Air Oring 1: 16-4295
Truck Air Oring 2: 16-4296
Truck Air Seal 1: 16-4295
Truck Air Seal 2: 16-4296
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
INTERCHANGE: AIRSOURCE #54541G, SANDEN #4541
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
