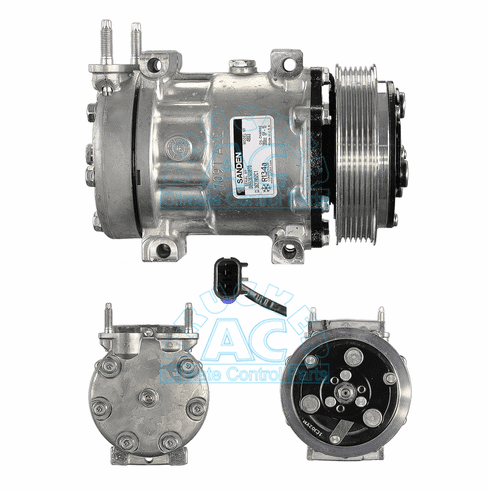

Sanden SD7H15 Compressor Navistar OEM# SD 4803

Sanden SD7H15 Compressor for Navistar Trucks

Specifications

Manufacturer #: 4803

Application: Navistar Trucks

Description: SD7H15 COMPRESSOR/NAVISTAR

Volts: 12V

Clutch Diameter: 125mm

No. of Grooves: 6 groove

Belt Type: Serpentine

No. Comp. Cylinders: 7 cyl

Comp. Displacement (ci): 9.5 cu.in.

Factory Oil Charge: 300cc Oil

Fitting Port Position: Top

Fitting Style: Navistar Special Pad

Head Type: 4418

Wire Type: 2 Wire Female Packard #15300002

Replacement Clutch Assy.: 02-0606

Replacement Head Assy: 03-6563

Model: SD7H15HD

Mounting Type: Direct Long

OEM Number: 3627952-C1

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW

O-Ring #1: 16-4295

O-Ring #2: 16-4296

Shaft Type: Long Key Shaft

Diode Protection: w/diode

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, buses, RV's and vans.

INTERCHANGE: 3627952-C1 4803
