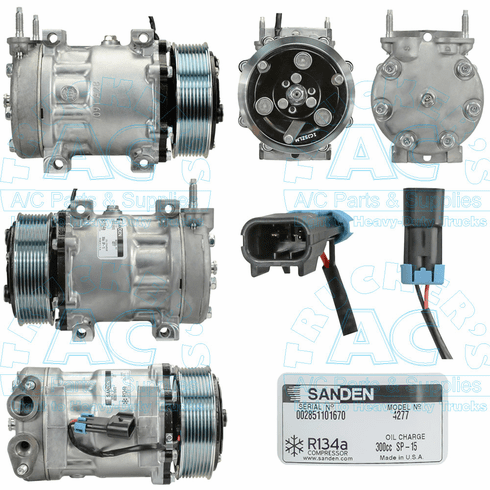

Sanden Compressor - Genuine OEM #: SKI4277
Make: Sanden
Manufacturer #: 4277
Application: Navistar Trucks
Description: Sanden Compressor/NAVISTAR
Additional Description: Enhanced Version
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 13 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Top
Fitting Style: Navistar Special Pad
Head Type: 4418
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-0601
Replacement Head Assy: 03-6563
Model: SD7H15E
Mounting Type: Direct Long
OEM Number: SKI4277
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Truck Air Oring 1: 16-4295
Truck Air Oring 2: 16-4296
Truck Air Seal 1: 16-4295
Truck Air Seal 2: 16-4296
INTERCHANGE: AIRSOURCE 54277; SANDEN 4277
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
