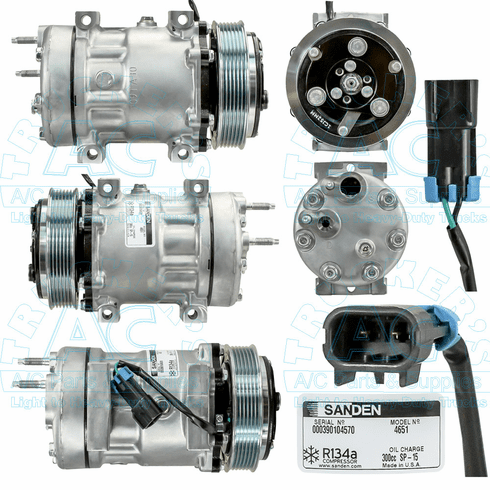

Sanden Compressor - Genuine. OEM #: SKI4651 - NAVISTAR
Make: Sanden
Manufacturer #: 4651
Application: Navistar Trucks
Description: Sanden Compressor/NAVISTAR
Volts: 24V
Clutch Diameter: 125mm
No. of Grooves: 6 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 240cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Navistar Special Pad
Head Type: GWA
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: NSS
Replacement Head Assy: 03-6555
Model: SD7H15HD
Mounting Type: Direct Long
OEM Number: SKI4651
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Truck Air Oring 1: 16-4295
Truck Air Oring 2: 16-4296
Truck Air Seal 1: 16-4295
Truck Air Seal 2: 16-4296
INTERCHANGE: AIRSOURCE 54651; SANDEN 4651
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
