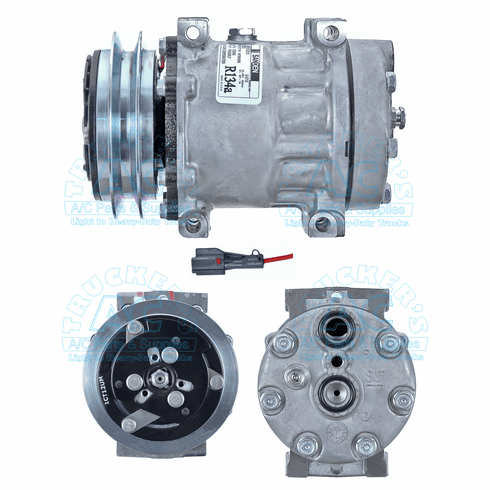

Sanden Compressor # 4714 ISUZU OEM# 8975002202 - DISCONTINUED
DISCONTINUED
2004 1998, Isuzu - FPR, FRV, NPR, 7H15 w/ 1 grv. 105mm Dia 12v Ear Mount, Sanden SD4714, OEM# 8975002202
Manufacturer #: 4714
Application: Isuzu MD Trucks
Description: SANDEN SD7H15/ISUZU TRUCK
Volts: 12V
Clutch Diameter: 132mm
No. of Grooves: 1 groove
Belt Type: 1/2'' Belt
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 200cc Oil
Fitting Port Position: Horizontal
Fitting Style: Ford O-ring Pad
Head Type: SJA
Wire Type: 1 Wire Female Yazaki #7222-7414-40
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: SD7H15HD
Mounting Type: Direct Short
OEM Number: 8975002201
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4224
O-Ring #2: 16-4224
Shaft Type: Long Key Shaft
Diode Protection: None
INTERCHANGE: 54714, 97500220, 8975002201, 4714
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
