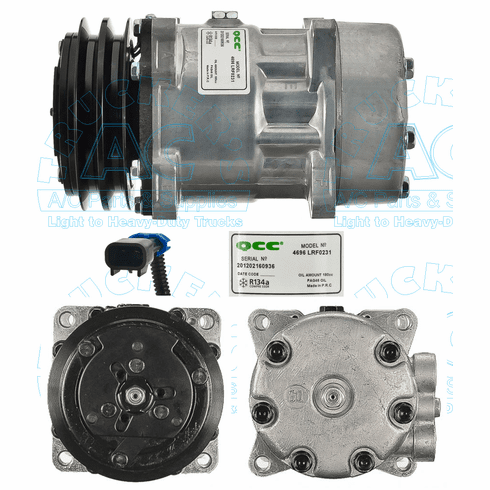

Sanden 4696 (QCC) Kenworth Peterbilt OEM# F69-1000 F69-6002-231 LF0231
Specifications
Manufacturer #: 4696
Application: Kenworth-Peterbilt Trucks
Description: Sanden Compressor
Additional Description: QCC Compressor
Volts: 12V
Clutch Diameter: 125mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Lateral
Fitting Style: O-ring Pad @ 90 deg
Head Type: GQ
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-1002
Replacement Head Assy: 03-6552
Model: SD7H15HD
Mounting Type: Ear 8 Long
OEM Number: F69-1000, F69-6002-231, LF0231
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5373Q F69-1000 F69-6002-231 F691000 F696002-231 F696002231 LF0231 4696
