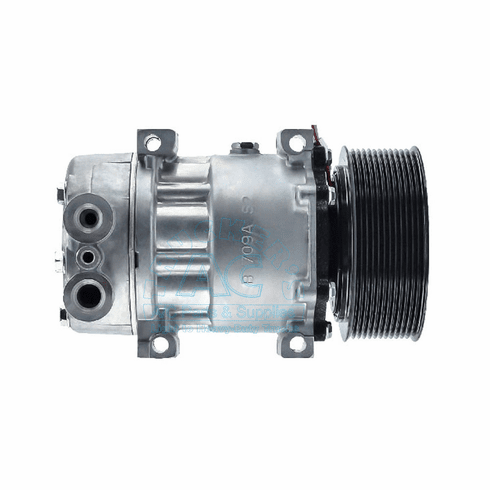

Sanden Style A/C Comp. Kenworth OEM#F69-6003-151
OEM Number: F69-6003-151
Application: Kenworth Trucks
Description: SANDEN SUPR-HD COMP 12GR 12V
Additional Description: Super HD style
Volts: 12V
Other OE Sanden #: 4370
Clutch Diameter: 126mm
No. of Grooves: 12 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 240cc Oil
Fitting Port Position: Lateral
Fitting Style: O-ring Pad @ 90 deg
Head Type: GQ
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-3514S
Replacement Head Assy: 03-6552
Model: SD7H15-Super HD
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: Diode/Thermal Fuse
Truck Air Oring 1: 16-4208
Truck Air Oring 2: 16-4210
Truck Air Seal 1: 16-4208
Truck Air Seal 2: 16-4210
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
INTERCHANGE: AIRSOURCE #5402G, CLIMATECH #LF4370, KENWORTH PETERBILT #F69-6003-151, RED DOT #75R-89532Q, SANDEN #4370
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
