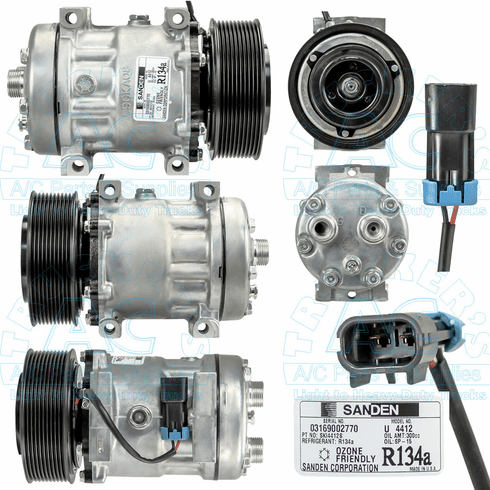

Sanden Compressor - Genuine OEM #: F69-6003-142
Make: Sanden
Manufacturer #: 4369
Application: Kenworth Trucks
Description: SD7H15 SUPR-HD COMPR 10GR
Additional Description: Super HD style
Volts: 12V
Clutch Diameter: 126mm
No. of Grooves: 10 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Lateral
Fitting Style: Top O-ring Pad
Head Type: GSA
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-3512S
Replacement Head Assy: 03-6553
Model: SD7H15-Super HD
Mounting Type: Direct Short
OEM Number: F69-6003-142
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: Diode/Thermal Fuse
Truck Air Oring 1: 16-4208
Truck Air Oring 2: 16-4210
Truck Air Seal 1: 16-4208
Truck Air Seal 2: 16-4210
INTERCHANGE: AIRSOURCE 54412; PACCAR KENWORTH - PETERBILT F69-6003-145; SANDEN 4114, 4310U, 4411, 4412, 4412S
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
