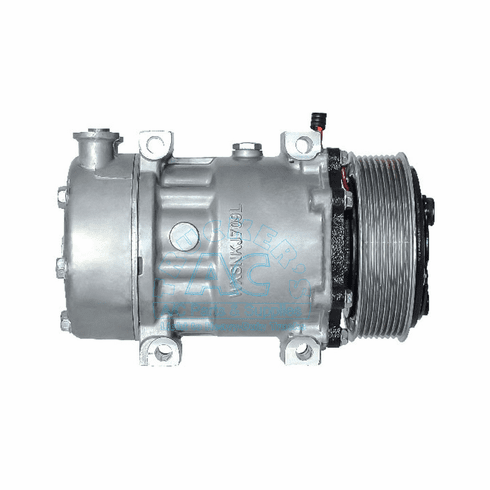

Sanden Style A/C Comp. Kenworth OEM#F69-6001-112
OEM Number: F69-6001-112
Application: Kenworth Trucks
Description: Sanden Compressor
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Lateral
Fitting Style: Top O-ring Pad
Head Type: GSA
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-0601
Replacement Head Assy: 03-6553
Model: SD7H15HD
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: w/diode
Truck Air Oring 1: 16-4208
Truck Air Oring 2: 16-4210
Truck Air Seal 1: 16-4208
Truck Air Seal 2: 16-4210
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
INTERCHANGE: AIRSOURCE #54322G, KENWORTH PETERBILT #F69-6001-112, SANDEN #4322
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
