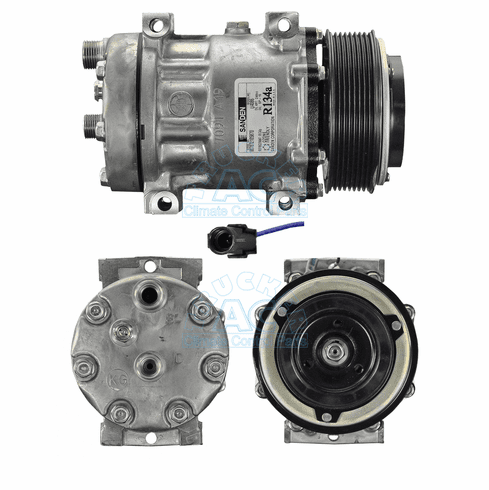

Sanden 4086 for Kenworth OEM# SKI4086
Specifications
Manufacturer #: 4086
Application: Kenworth Trucks
Description: SANDEN SUPR-HD COMP/PACCAR
Additional Description: Super HD style
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 240cc Oil
Fitting Port Position: Horizontal
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: KGA
Wire Type: 1 Wire Female Packard #12010996
Replacement Clutch Assy.: 02-0601S
Replacement Head Assy: NSS
Model: SD7H15-Super HD
Mounting Type: Direct Long
OEM Number: SKI4086
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: Diode/Thermal Fuse
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, bus, RV and van AC parts.
