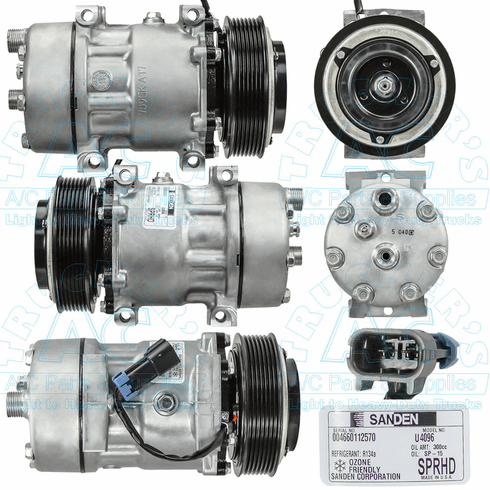

Sanden Compressor - Genuine OEM Grade OEM #: SKI4096
Make: Sanden
Manufacturer #: 4096
Application: Kenworth Trucks
Description: SANDEN SUPR-HD COMP/KENWORTH
Additional Description: Super HD style
Volts: 12V
Clutch Diameter: 126mm
No. of Grooves: 7 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: KCA
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-3519
Replacement Head Assy: 03-6556
Model: SD7H15-Super HD
Mounting Type: Direct Short
OEM Number: SKI4096
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: Diode/Thermal Fuse
Truck Air Oring 1: 16-4208
Truck Air Oring 2: 16-4210
Truck Air Seal 1: 16-4208
Truck Air Seal 2: 16-4210
INTERCHANGE: AIRSOURCE 54096; SANDEN 4096
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
