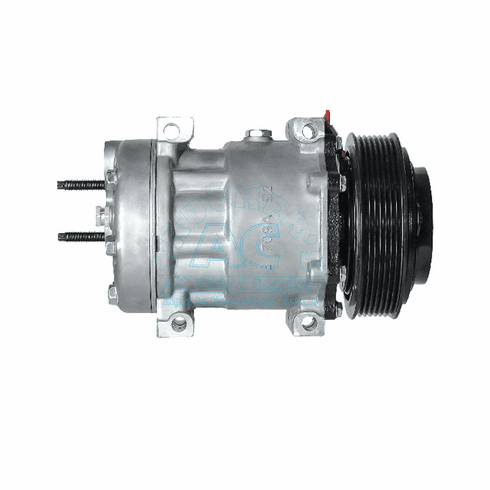

Sanden Style A/C Comp. Kenworth OEM# F69-1013
Zoom

Sanden Style A/C Comp. Kenworth OEM# F69-1013

Item# 03-1013G
$206.51
Availability: Usually ships the same business day.

Product Description

OEM Number: F69-1013

Application: Kenworth Trucks

Description: Sanden Super HD AC Compressor

Additional Description: Super HD style

Volts: 12V

Clutch Diameter: 126mm

No. of Grooves: 7 groove

Belt Type: Serpentine

No. Comp. Cylinders: 7 cyl

Comp. Displacement (ci): 9.5 cu.in.

Factory Oil Charge: 300cc Oil

Head Type: 4577

Wire Type: 2 Wire Female Packard #15300002

Replacement Clutch Assy.: 02-3519

Replacement Head Assy: NSS

Model: SD7H15-Super HD

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW

Shaft Type: Long Key Shaft

Diode Protection: Diode/Thermal Fuse

Truck Air Oring 1: 16-4267

Truck Air Oring 2: 16-4273

Truck Air Seal 1: 16-4267

Truck Air Seal 2: 16-4273



All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

INTERCHANGE: AIRSOURCE #54577G, KENWORTH PETERBILT #F69-1015-131, SANDEN #4107 / 4577

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
