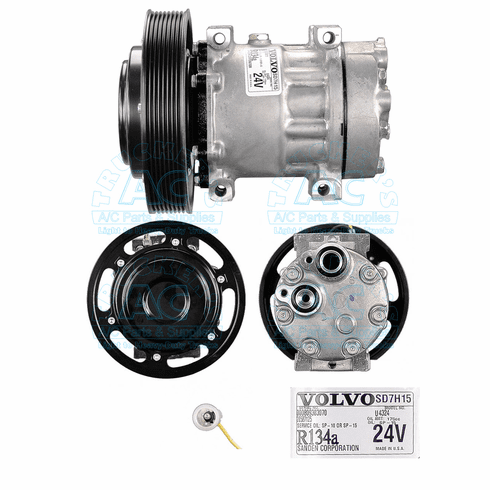

Sanden 4324 Mack Volvo/GM OEM# 6KS820803
MACK, All w/8 gr 180 mm, Direct Mount, 1 wire 24V (4324), OEM# 6KS820803
Volvo/GM, All w/8 gr 180 mm, Direct Mount, 1 wire 24V (4324), OEM# 6KS820803
Specifications
Manufacturer #: 4324
Application: Mack/Volvo Trucks
Description: SANDEN SHD COMPRESSOR/VOLVO
Additional Description: Super HD style
Volts: 24V
Clutch Diameter: 180mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 175cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Pad O-ring, Volvo Off-Set Top Left, Suc over Dis
Head Type: WV
Wire Type: 1 Wire Bullet Volvo 1308436
Replacement Clutch Assy.: NSS
Replacement Head Assy: 03-6562
Model: SD7H15-Super HD
Mounting Type: Direct Short
OEM Number: 6KS820803
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4270
O-Ring #2: 16-4269
Shaft Type: Long Key Shaft
Diode Protection: Diode/Thermal Fuse
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 54324 4324 6KS820803
