Sanden 4039 4731 4424 Kenworth Peterbilt F69-6002-121
Kenworth
All Models, w/6 gr 125mm w/Cum ISM, C10/C12 (4039 4731, 4424), F69-6002-121
Peterbilt
All Models, w/6 gr 125mm w/Cum ISM, C10/C12 (4731, 4424), F69-6002-121
TAC# 03-1401
Manufacturer #: 4039

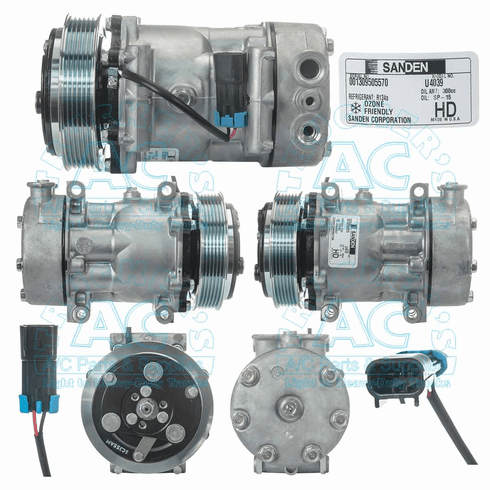

Sanden Compressor-6 Groove
OEM F69-6002-121
12 Volts
Clutch Diameter: 125mm
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Lateral
Fitting Style: Top O-ring Pad
Head Type: GSA
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-0606/02-1606
Replacement Head Assy: 03-6553
Model: SD7H15HD
Mounting Type: Direct Long
Oil Type: PAG100
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Check clutch shaft type
Diode Protection: w/diode
Truck Air Oring 1: 16-4208
Truck Air Oring 2: 16-4210
Truck Air Seal 1: 16-4208
Truck Air Seal 2: 16-4210
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, bus, RV and van AC parts.
INTERCHANGE: 4424 5362 N83-304163 18-05000 18-50000 4731-6000 F69-6001-122 F69-6002-121 75R-84292 N83304163 1805000 1850000 47316000 F696001122 F696002121 75R84292 4039 4731 Airsource 5362
