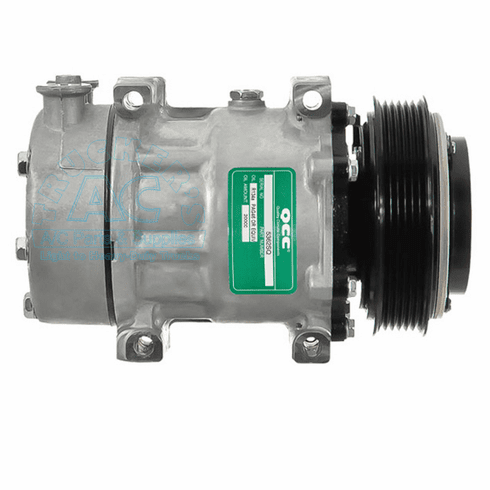

QCC AC Compressor - Professional Grade OEM #: Repl F69-6003-122 - Peterbilt
OEM Number: Repl F69-6003-122
Make: QCC Compressor
Manufacturer #: repl 4376
Application: Peterbilt Trucks
Description: QCC Super HD style Compressor
Additional Description: QCC Super HD style Compressor
Volts: 12V
Other OE Sanden #: 4079
Clutch Diameter: 125mm
No. of Grooves: 6 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Lateral
Fitting Style: Top O-ring Pad
Head Type: GSA
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: NSS
Replacement Head Assy: NSS
Model: QSD7H15-Super HD
Mounting Type: Direct Short
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Additional Notes: QCC compressor replacement for Sanden
Diode Protection: Diode/Fuse
Truck Air Oring 1: 16-4208
Truck Air Oring 2: 16-4210
Truck Air Seal 1: 16-4208
Truck Air Seal 2: 16-4210
INTERCHANGE: AIRSOURCE 5362SQ
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
