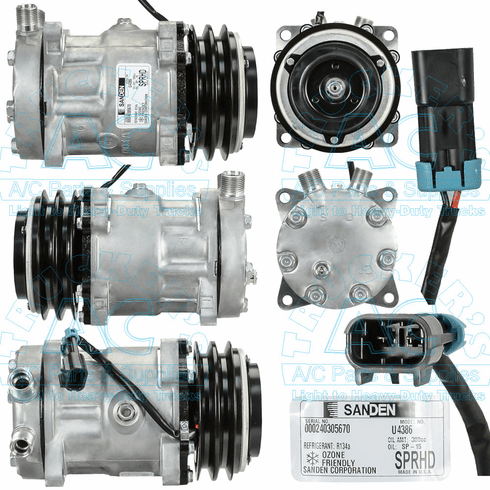

Sanden Compressor - Genuine - Manufacturer #: 4392 - Peterbilt Trucks
Make: Sanden
Manufacturer #: 4392
Application: Peterbilt Trucks
Description: Sanden Super HD AC Compressor
Additional Description: Super HD style
Volts: 12V
Clutch Diameter: 125mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Vertical
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: JDA
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-1002S
Replacement Head Assy: 03-6533A
Model: SD7H15-Super HD
Mounting Type: Ear 8 Long
OEM Number: F69-6001-233
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: Diode/Thermal Fuse
Truck Air Oring 1: 16-4208
Truck Air Oring 2: 16-4210
Truck Air Seal 1: 16-4208
Truck Air Seal 2: 16-4210
INTERCHANGE: AIRSOURCE 5363S; PACCAR KENWORTH - PETERBILT F69-6003-233, F69-6003-273; SANDEN 4386, 4392, 4393
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
