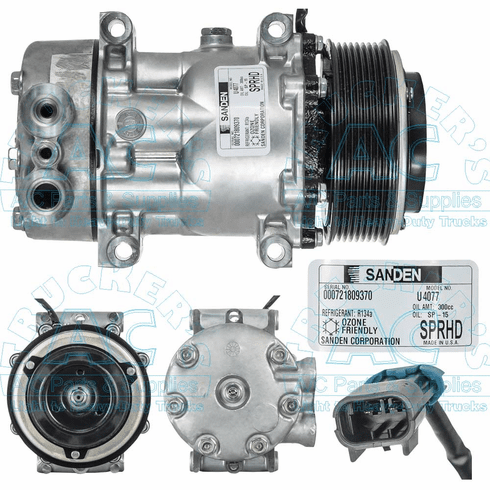

SANDEN 4368 Kenworth 4368 Peterbilt F69-6003-111
Sanden Compressor 4368 for the following:
Kenworth, SD7H15 / SD7H15HD (R134a), w/8 gr 119mm 4.6" dia w/S60 Series Det., Heavy Duty Version, OEM# 4368
Peterbilt All Models, w/8 gr 119mm 4.6" dia w/S60 Series Det., Super Heavy Duty Version (4368), F69-6003-111
Specifications
Manufacturer #: 4368
Application: Peterbilt Trucks
Description: SANDEN SUPRHD COMP/PACCAR
Additional Description: Super HD style
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Lateral
Fitting Style: O-ring Pad @ 90 deg
Head Type: GQ
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-0601S
Replacement Head Assy: 03-6552
Model: SD7H15-Super HD
Mounting Type: Direct Long
OEM Number: F69-6003-111
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: Diode/Thermal Fuse
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and van AC parts.
INTERCHANGE: 5365S F69-6003-111 F696003111 4077 4368
