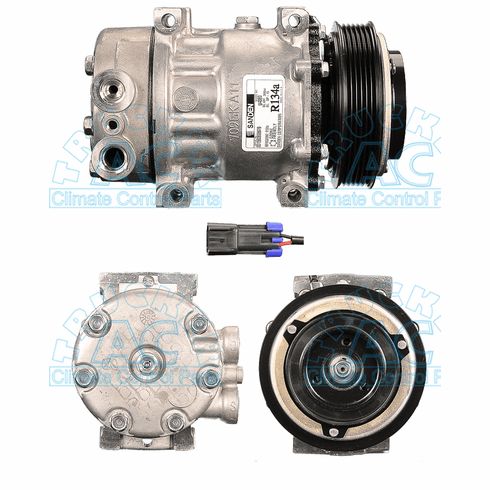

SANDEN 4377 Peterbilt F69-6003-121
Sanden Heavy Duty Compressor for the following applications:
Peterbilt, Super Heavy Duty Version (4377), F69-6003-121
Kenworth w/6 gr 125mm 4.6" 2 wire w/C3406, Heavy Duty Version, 4377
Specifications
Manufacturer #: 4377
Application: Peterbilt Trucks
Description: SANDEN SUPRHD COMP/PACCAR
Additional Description: Super HD style
Volts: 12V
Clutch Diameter: 125mm
No. of Grooves: 6 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Lateral
Fitting Style: O-ring Pad @ 90 deg
Head Type: GQ
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-0606S
Replacement Head Assy: 03-6552
Model: SD7H15-Super HD
Mounting Type: Direct Short
OEM Number: F69-6003-121
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Long Key Shaft
Diode Protection: Diode/Thermal Fuse
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, bus, RV and van AC parts.
INTERCHANGE: 5366S N83-304993 F69-6003-121 N83304993 F696003121 4080 4377
