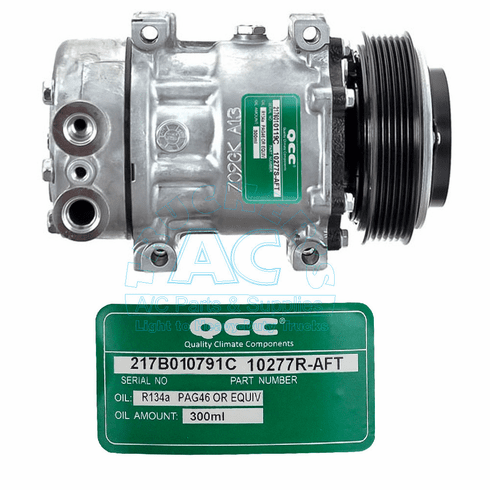

QCC AC Compressor - Professional Grade OEM #: Repl F69-6003-121 - Peterbilt
QCC AC Compressor - Professional Grade OEM #: Repl F69-6003-121 - Peterbilt
QCC AC Compressor - Professional Grade OEM #: Repl F69-6003-121 - Peterbilt
Item#: 03-1405SQ
Availability: Usually ships the same business day
$207.83

Product Description
OEM Number: Repl F69-6003-121

Make: QCC Compressor

Manufacturer #: repl 4377

Application: Peterbilt Trucks

Description: QCC Super HD style Compressor

Additional Description: QCC Super HD style Compressor

Volts: 12V

Other OE Sanden #: 4080

Clutch Diameter: 125mm

No. of Grooves: 6 groove

Belt Type: Serpentine

No. Comp. Cylinders: 7 cyl

Comp. Displacement (ci): 9.5 cu.in.

Factory Oil Charge: 300cc Oil

Fitting Port Position: Lateral

Fitting Style: O-ring Pad @ 90 deg

Head Type: GQ

Wire Type: 2 Wire Female Packard #15300002

Replacement Clutch Assy.: NSS

Replacement Head Assy: NSS

Model: QSD7H15-Super HD

Mounting Type: Direct Short

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW

Shaft Type: Long Key Shaft

Additional Notes: QCC compressor replacement for Sanden

Diode Protection: Diode/Fuse

Truck Air Oring 1: 16-4208

Truck Air Oring 2: 16-4210

Truck Air Seal 1: 16-4208

Truck Air Seal 2: 16-4210



INTERCHANGE: AIRSOURCE 5366SQ

All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
