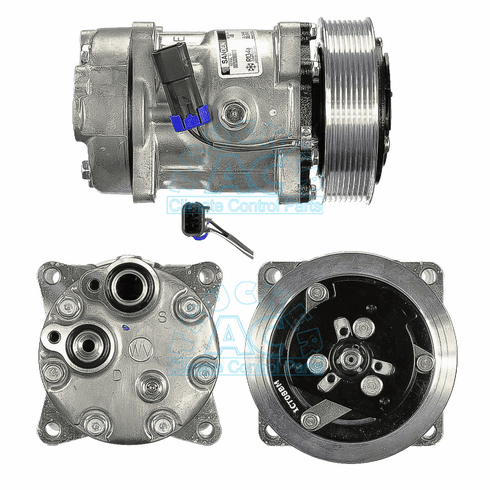

Sanden Compressor # 4716 4490 Volvo GM OEM# 8082268
Volvo GM, w/8 gr. 130mm 5" dia. Ear (14L) w/WV head type (4716), OEM# 8082268, 2521493
Specifications
Manufacturer #: 4490
Application: Volvo Trucks
Description: Sanden Compressor
Volts: 12V
Clutch Diameter: 130mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Pad O-ring, Volvo Off-Set Top Left, Suc over Dis
Head Type: WV
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-0608
Replacement Head Assy: 03-6562
Model: SD7H15HD
Mounting Type: Ear 8 Long
OEM Number: 8082268, 2521493
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4270
O-Ring #2: 16-4269
Shaft Type: Long Key Shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5383 N83-304432 N83-304534 N83304432 N83304534 1401400 1406002 75R-81762 RD5-11356-0 75R81762 RD5113560 4490 4716 8082268 ZGG705134 2521493 75R-8732 75R8732
