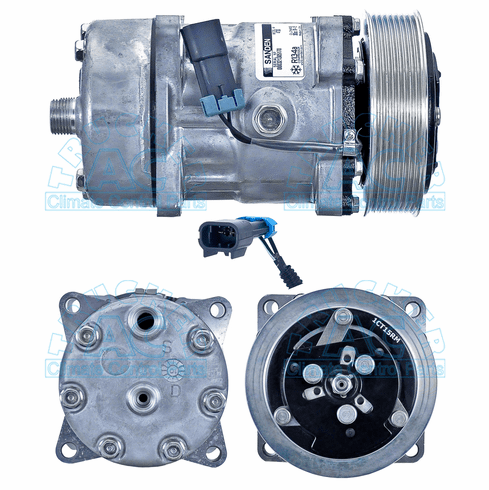

Sanden Compressor # 4700 Volvo GM OEM# 8080058
Volvo GM, w/8 gr. 130mm 5" dia. Ear (Volvo 14L) (4700), OEM# 8080058, 8177089, 8142556
Specifications
Manufacturer #: 4700
Application: Volvo Trucks
Description: Sanden Compressor 8gr KChead
Volts: 12V
Clutch Diameter: 130mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: KC
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-0608
Replacement Head Assy: 03-6540C
Model: SD7H15HD
Mounting Type: Ear 8 Long
OEM Number: 8080058, 8177089
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4208
O-Ring #2: 16-4210
Shaft Type: Short Spline Shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
INTERCHANGE: 5381 N83-304203 N83304203 1401344 75R-84372 75R84372 4700 8080058 4659 8142556
