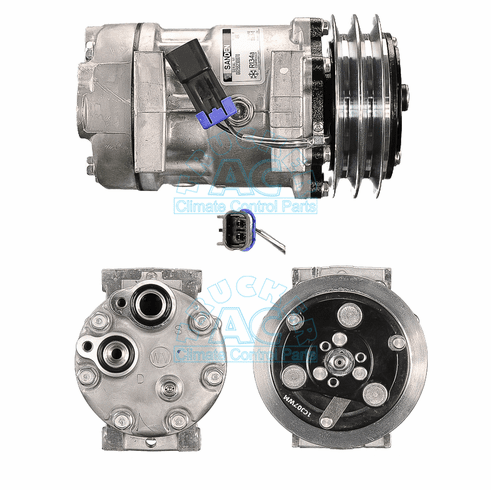

SANDEN 4715 Volvo GM OEM# 8082269
New Sanden compressor for Volvo (GM)
w/2 gr. 132mm 60 eng. w/WV head (4715), OEM# 8082269
Specifications
Manufacturer #: 4715
Application: Volvo Trucks
Description: Sanden Compressor
Volts: 12V
Clutch Diameter: 132mm
No. of Grooves: 2 groove
Belt Type: Two 1/2'' Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Pad O-ring, Volvo Off-Set Top Left, Suc over Dis
Head Type: WV
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-1604
Replacement Head Assy: 03-6562
Model: SD7H15
Mount Type: check OE Clutch shaft type
Mounting Type: Direct Long
OEM Number: 85104593
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4270
O-Ring #2: 16-4269
Shaft Type: Long Key Shaft
Additional Notes: 4778 splined (4777-9931 clutch), 4715 keyed (4694-9931 clutch)
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, bus, RV and van AC parts.
INTERCHANGE: 5382 N83-304213 N83-304243 N83304213 N83304243 1401379 1410024 75R-84382 75R-84432 75R84382 75R84432 4715 4778 4890 20370290 8082201 8082269 85104593 Airsource 5382
