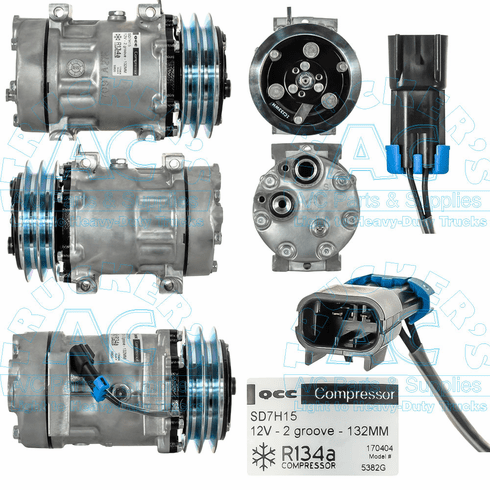

Sanden Style Aftermarket Com Volvo
Zoom

Sanden Style Aftermarket Com Volvo

Item# 03-1603Q
$206.51
Availability: Usually ships the same business day.

Product Description

OEM Number: 85104593

Application: Volvo Trucks

Volts: 12V

Other OE Sanden #: 4715

Additional OE Sanden #: 4778

Clutch Diameter: 132mm

No. of Grooves: 2 groove

Belt Type: Two 1/2'' Belts

No. Comp. Cylinders: 7 cyl

Comp. Displacement (ci): 9.5 cu.in.

Factory Oil Charge: 300cc Oil

Fitting Port Position: Horizontal

Fitting Style: Rear Pad O-ring, Volvo Off-Set Top Left, Suc over Dis

Head Type: WV

Wire Type: 2 Wire Female Packard #15300002

Replacement Clutch Assy.: 02-1604

Replacement Head Assy: 03-6562

Model: SD7H15

Mount Type: check OE Clutch shaft type

Mounting Type: Direct Long

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW

Shaft Type: Long Key Shaft

Notes: 4778 splined (4777-9931 clutch), 4715 keyed (4694-9931 clutch)

Diode Protection: w/diode

Truck Air Oring 1: 16-4270

Truck Air Oring 2: 16-4269

Truck Air Seal 1: 16-4270

Truck Air Seal 2: 16-4269



All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

INTERCHANGE: AIRSOURCE #5382Q, ALLIANCE #N83-304213 / N83-304243, KYSOR #1401379, MACK #4379-RD53827-4, RED DOT #75R-84382 / 75R-84432, SANDEN #4715 / 4778, VOLVO #20370290 / 8082201 / 8082269 / 85104593

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
