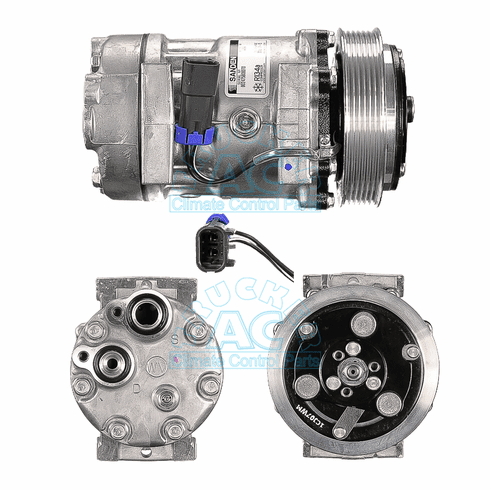

SANDEN 4494, 4757, 4891 Volvo GM 8088112
Sanden compressor for Volvo (GM) w/6 gr. 125mm (Cummins 600 15L) (4757, 4891), OEM# 8088112, 20501069
Mack, All models w/6 gr 125 mm, Direct Mount, 2 wire (4085), OEM# 20501069
Specifications
Manufacturer #: 4494
Application: Volvo Trucks
Description: Sanden Compressor
Volts: 12V
Clutch Diameter: 125mm
No. of Grooves: 6 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 300cc Oil
Fitting Port Position: Horizontal
Fitting Style: Rear Pad O-ring, Volvo Off-Set Top Left, Suc over Dis
Head Type: WV
Wire Type: 2 Wire Female Packard #15300002
Replacement Clutch Assy.: 02-1606
Replacement Head Assy: 03-6562
Model: SD7H15HD
Mounting Type: Direct Long
OEM Number: 8088112, 20501069
Oil Type: PAG100
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW
O-Ring #1: 16-4270
O-Ring #2: 16-4269
Shaft Type: Long Key Shaft
Diode Protection: w/diode
All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty
We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, bus, RV and van AC parts.
INTERCHANGE: 5387 U5387 1401363 75R-81372 75R81372 RD5-11257-0 RD5112570 4494 4757 4891 U4494 U4757 U4891 20501069 8088112 Airsource 5387
