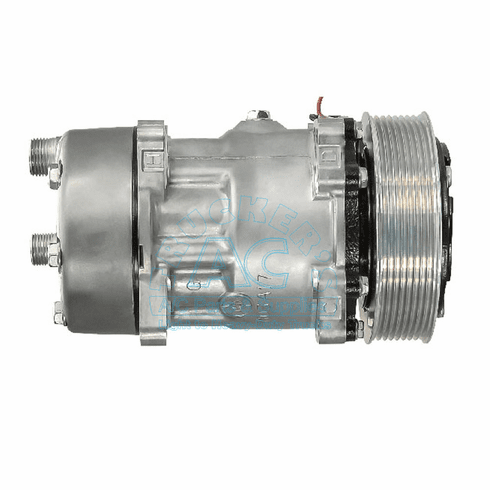

Sanden Style A/C Compressor Aftermarket - Volvo
Sanden Style A/C Compressor Aftermarket - Volvo
Sanden Style A/C Compressor Aftermarket - Volvo
Item#: 03-1612G
Availability: Usually ships the same business day
$206.51

Product Description
OEM Number: 8142556

Make: Sanden Style

Manufacturer #: 4659

Application: Volvo Trucks

Description: A/C Compressor, R134a

Volts: 12V

Clutch Diameter: 130mm

No. of Grooves: 8 groove

Belt Type: Serpentine

No. Comp. Cylinders: 7 cyl

Comp. Displacement (ci): 9.5 cu.in.

Factory Oil Charge: 270cc Oil

Fitting Port Position: Horizontal

Fitting Style: Male Insert O-Ring #8 & #10

Head Type: KC

Wire Type: 1 Wire Male Packard #12065171

Replacement Clutch Assy.: 02-3509

Replacement Head Assy: 03-6540C

Model: SD7H15HD

Oil Type: PAG100

Product Name: Compressor

Refrigerant Type: R134a

Rotation: CW

Shaft Type: Long Key Shaft

Diode Protection: w/diode

Truck Air Oring 1: 16-4208

Truck Air Oring 2: 16-4210

Truck Air Seal 1: 16-4208

Truck Air Seal 2: 16-4210



All Our Parts are Brand New and covered by the Original Equipment Manufacturer's Warranty

INTERCHANGE: AIRSOURCE #5708G, ALLIANCE #N83-304614, KYSOR #1401382, RED DOT #75R-81592 / 75R-81682 / RD5-11338-0, SANDEN #4781 / 4895, VOLVO #20370293

We carry a full line of Sanden compressors, Seltec/Valeo compressors along with all other brands for Freightliner, Ford, Kenworth, Mack, Peterbilt, Volvo/GM Trucks, Caterpillar, Bus, RV and Van AC parts.
